Flexible Microphone to Sun visor!
PTT Switch to Shift lever!
FEATURES: For common use in FM and SSB

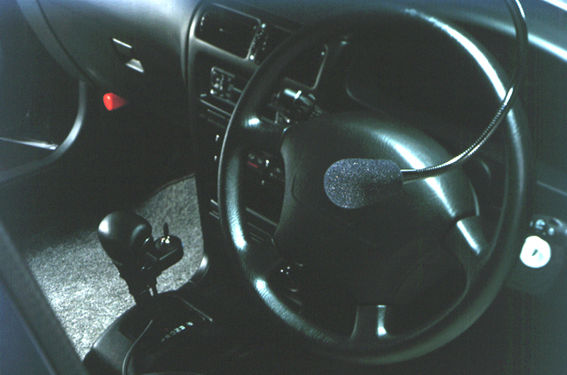

- Mobile Microphone with flexible gooseneck for safety operation over driving a car.
- PTT Switch whose shape is thin matches well the interior of a car.
- The flexible microphone should be fastened with sun visor when mounting.
- TX/RX Switch (PTT Switch) is available for mounting with the all kinds of gear-shift lever in the car including the shift lever for automatic type.
- Provided with the Non-Modulation Prevention Circuit with alarm sound and Microphone Output adjusting function.
- Equipped with UP/DOWN switches and LED Transmitting Indicator.
- Connectable with each transceiver available in the market by the Microphone Interconnecting Cable optionally available.(Please see the list of cables.)
- Available for direct connecting with the Interconnecting Cable provided with Power feeding line, which enable to get the DC power from transceivers.
- The power feeding can be done from both mobile battery(DC12V) and the microphone connector of transceiver. (The "D" Series Microphone Interconnecting Cable are provided with the power feeding line.) .
SPECIFICATIONS:
- High Quality Electret Condenser Microphone :1piece
- Flexible Gooseneck :8mm (Total Length:320mm)
- Microphone Cord :3 meters
- In & Output Cord : 70 cm(with 8P interconnecting Jack and RCA Jack)
- Matching Output Impedance :500 Ohms-100K Ohms
- Output Voltage :0 - 50mV (RMS)
- Power Voltage :DC 12V - 15V
- The Size of Switch Box :44(H) X 38(W) X 67(D)mm
- Weight :About 240g
PDF
Long Length Microphone For Large Mobiles!
FEATURES:
- JX-5G is designed for only large mobiles.
- The Uni-Directional microphone serves to reduce the background noise.
- The flexible gooseneck is to withstand vibration type.
- Transmitting/Receiving Selector Switch is mountable with the gear-shift lever for safety driving.
- TX/RX Switch Box is provided with UP/DOWN Switches and LED Transmitting Indicator.
- Variable microphone sensitivity due to Output Level Adjusting Volume built-in.
- Provided with Non-Modulation Prevention Circuit with Alarm sound.
- Usable with various kind of Transceiver by connecting with conversion cables optionally available.
- Usable with microphone cable equipped with power feeding line ("D"series cables).
SPECIFICATIONS:
- High Quality Electret Condenser Microphone :1piece
- Flexible Gooseneck :8mm (Total Length:510mm)
- Microphone Cord :4.5 meters
- In & Output Cord : 70 cm(with 8P interconnecting Jack and RCA Jack)
- Matching Output Impedance :500 Ohms-100K Ohms
- Output Voltage :0 - 50mV (RMS)
- Power Voltage :DC 12V - 15V
- The Size of Switch Box :44(H) X 38(W) X 67(D)mm
- Weight :About 400g>
PDF
Flexible Microphone To Sun visor!
PTT Switch Set Freely!!
FEATURES:
- The Model FX-7500 is provided with flat type switch and control boxes to be set on any place in the car.
- The power feeding can be done from mobile battery (DC12V), normal dry battery and microphone connector of transceiver.
- The uni-directional microphone serves to reduce the background noise.
- The microphone is equipped with UP/DOWN Switch and LED TX Indicator.
- Provided with light-touch PTT Switch and electronic sound for checking TX and RX operation.
- Provided with the Non-Modulation Prevention Circuit with alarm sound
SPECIFICATIONS:
- High Quality Electret Condenser Microphone :1piece
- Flexible Gooseneck :8mm (Total Length:320mm)
- Microphone Cord :3 meters
- In/Output Cord(w/Interconnecting Jack) :70cm
- Matching Output Impedance :500 Ohms-100K Ohms
- Output Voltage :0 - 50mV (RMS)
- Power Voltage
Battery(UM3 batteries X 2) : DC3V
Power Cord : DC5 - 15V
"D" Series interconnection cable : DC5 - 15V
- Alarm Sound : Approx. 4.5KHz (Intermittent sound)
- The Releasing of Non-Modulation : By Cutting the Leadwires
- Prevention Circuit
Switch Box Size :12(H)X52(W)X55(D)mm
Control Box Size :22(H)X67(W)X110(D)mm
- Weight :About 330g
PDF
